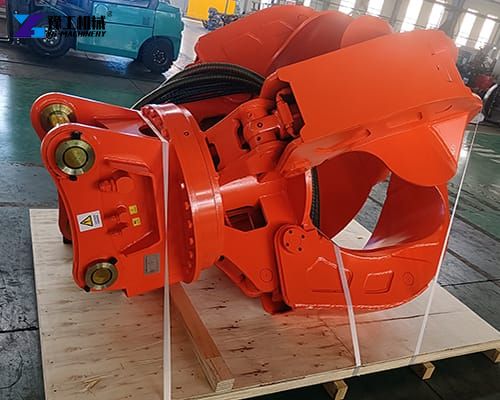

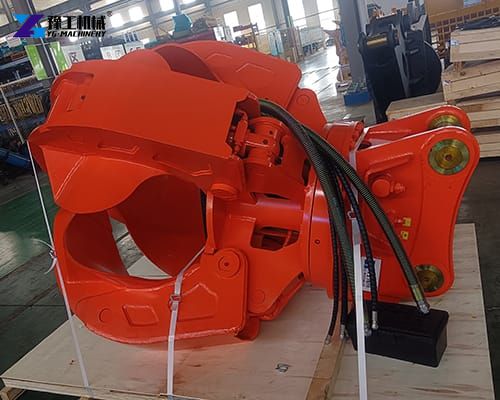

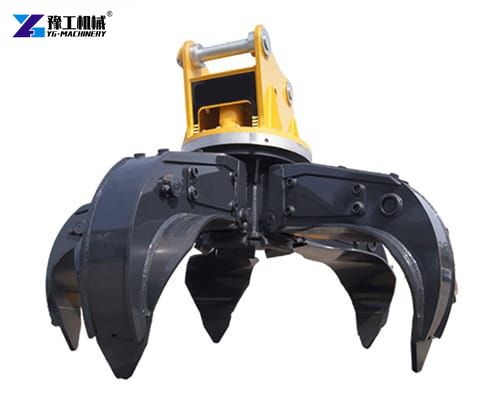

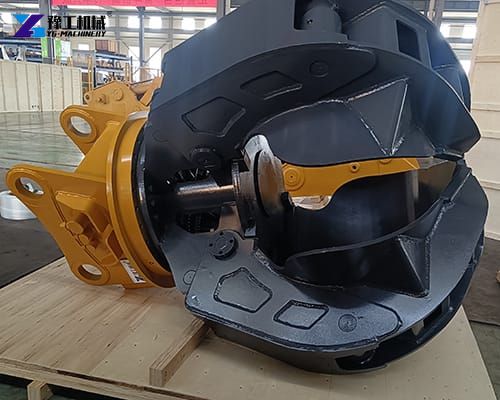

Excavator orange peel grapple is a hydraulic attachment connected to the boom and stick of an excavator or material handler. Its name comes from the way its tines open and close, resembling the segments of an orange peel. The grapple’s design typically includes 4 to 6 tines, each mounted on a pivot system that enables synchronized movement. This configuration ensures a firm, evenly distributed grip, preventing materials from slipping during handling. The orange peel grapple excels in clamping irregular shapes, achieving secure grasping even when materials are slippery, angular, or scattered. It not only enhances operational efficiency but also minimizes labor-intensive processes, reduces safety risks, and optimizes resource utilization.
Excavator Orange Peel Grapple Parameters
| Model | YG-04A | YG-06A | YG-08A | YG-06B | YG-08B |
| No. of Jaw | 4/5 piece | 4/5 piece | 4/5 piece | 4/5 piece | 4/5 piece |
| Suitable Excavator | 6-9T | 10-17T | 18-25T | 10-17T | 18-25T |
| Weight | 355/420kg | 900/1000kg | 1650/1900kg | 850/1000kg | 1700/1950kg |
| Max. Opened Grapple | 1200mm | 1600mm | 2050mm | 1900mm | 2500mm |
| Height of Opened Grapple | 1000mm | 1500mm | 1700mm | 1550mm | 2000mm |
| Working pressure | 200bar | 260bar | 320bar | 260bar | 320bar |
| Working flow | 50-100lpm | 60-120lpm | 200-250lpm | 60-120lpm | 200-250lpm |
| Capacity | 0.3m³ | 0.4m³ | 0.8m³ | 0.5m³ | 1m³ |
Features of The Orange Peel Grapple
- Wide opening range
The tines of the excavator orange peel grapple can open exceptionally wide, making it easy to pick up large volumes of materials in a single motion. - High clamping force
Powerful hydraulic cylinders deliver massive gripping power ensuring that materials do not slip during raising rotation or transport. - Wear-resistant design
The tines and shell are reinforced with high-abrasion-resistant steel, providing years of service even under harsh environments such as scrap yards. - Modular structure

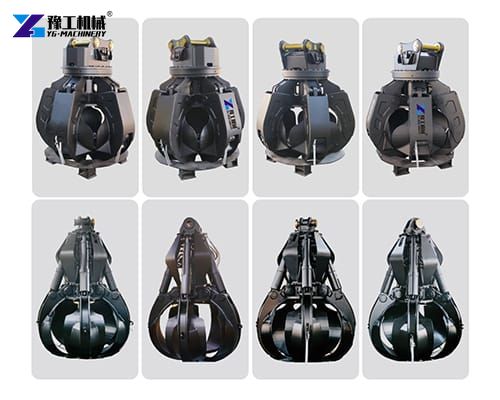

Different tine numbers are available, such as four-tine or five-tine configurations, allowing customization for specific materials. - Energy-efficient hydraulics
Newer hydraulic systems reduce fuel consumption while increasing responsiveness.
Structural Composition and Design Features
The structural integrity of an excavator orange peel grapple hinges on its robust components. Key elements include:
- Tines/Jaws: The curved, claw-like structures responsible for gripping materials. Made from high-strength steel alloys, they resist wear and deformation.
- Hydraulic Cylinders: These power the opening and closing of tines, with precision control valves enabling operators to modulate grip strength.
- Hinge Pins and Bushings: Critical for smooth articulation and durability under heavy loads.
- Protection Frames and Guards: Shield hydraulic components from debris and impacts.
Advantages and Performance Benefits
- Enhanced Productivity: Faster cycle times and reduced manual handling accelerate project timelines.
- Safety: Secure gripping minimizes material drop risks, protecting workers and equipment.
- Cost Efficiency: Reduces labor costs and maximizes fuel efficiency by streamlining operations.
- Durability: High-grade materials and reinforced construction ensure longevity, even in harsh environments.
- Compatibility: Fits a wide range of excavator models via standardized mounting systems.
- Eco-Friendliness: Supports recycling initiatives by efficiently sorting and transporting reusable materials.
Essential Applications of the Excavator Orange Peel Grapple
The versatility of the orange peel grapple makes it suitable for a wide array of demanding applications:
- Scrap Metal Yards: This is perhaps its most common application, where it efficiently handles shredded scrap, long structural beams, tangled wire, and car bodies, facilitating their loading onto trucks or into shredders.
- Demolition Sites: It assists in the cleanup process by grabbing and moving large, irregular pieces of concrete, rebar, and debris that are too awkward for a standard bucket.
- Port and Rail Operations Employed for the efficient loading and unloading of bulk materials and scrap from ships, barges, and railcars.
- Quarries and Rock Handling Some heavy-duty variants are used for gripping and moving large, irregularly shaped rocks or rip-rap.
Orange Peel Grab Maintenance
Proper maintenance ensures that the excavator orange peel grapple performs safely and effectively for years.
- Daily inspections
Check for cracks, bent tines, loose bolts, and hydraulic leaks. - Lubrication
Pins and bushings require frequent lubrication to avoid friction damage. - Hydraulic system care
Ensure hoses are intact, connections are tight, and oil is clean. - Wear part replacement
Tine tips, wear plates, and bushings should be replaced once significant wear is detected. - Cleaning
Regular cleaning prevents metal fragments, stones, or debris from damaging moving parts. - Scheduled professional servicing
A trained technician should examine structural integrity and hydraulic performance periodically.
Excavater Grab Attachments for Sale in YG
At YG Attachments, we know the demands of heavy-duty material handling. Whether your operation requires the robust power of our specialised excavator orange peel grapple for scrap metal or the precision and strength of a hydraulic log grapple for timber yard management, we engineer our attachments to maximise your productivity and machine life. Contact us today to discuss your specific needs and elevate your efficiency.
