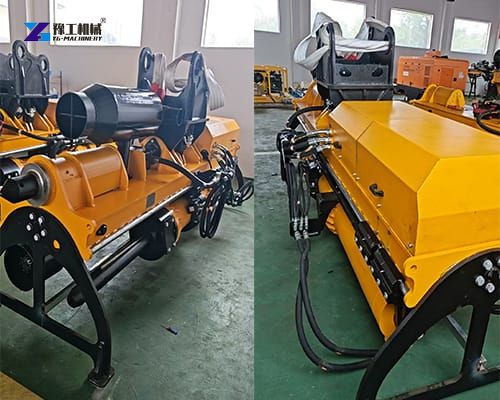

A client from the Philippines sent us an inquiry about the integrated rock drill and splitter last month. He told us they faced a significant challenge. Their existing fleet of conventional drilling equipment struggled with mixed hard rock conditions. They were specifically looking for a rock drill and splitter system capable of delivering consistent force, low vibration, and stable penetration on varied rock formations. We provide him this machine working videos on sites. He was interested in this rock drill and splitter. He was deeply impressed by the machine’s performance. Our sales manager confirmed a lot of details with him so as to provide the suitable model for him. After about 20days of further discussion, we have reached a cooperation agreement.
Parameter of the Rock Drill and Splitter Exported to the Philippines
| Model | YG-130 |
| Suitable Excavator | 20T-36T Excavator |
| Maximum Horizontal Splitting Height | 9475mm |
| Maximum Vertical Splitting Height | 6715mm |
| Maximum Splitting Depth | 6705mm |
| Maximum Splitting Distance | 10225mm |
| Pilling Beam Length | 3875mm |
| Drilling Advance Stroke | 2000mm |
| Maximum Drilling Thrust Force | 50KN |
| Maximum Drilling Pull Force | 32KN |
| Piling Advance Stroke | 1500mm |
| Maximum Piling Thrust Force | 160KN |
| Maximum Piling Full Force | 100KN |
| Hydraulic Pressure | Max. 35Mpa |
| Hydraulic Flow | Min. 240L/min |
| Weight | 4200kg |
| Dimensions | 4210*1400*1785mm |
| Operation Mode | Remote Control |
Advantages of the Integrated Rock Drill and Splitter
- Efficient power duo: when you pair a rock drill and splitter, tough rock becomes manageable, turning rubble into ready-to-use fill.
- Time-saver combo: the rock drill and splitter speed up initial breaking and then clean, uniform fragment sizing, reducing manual labor.
- Fewer tools needed: one two-step solution (drill, then split) often replaces heavier demolition gear on smaller jobs.
- Versatile by design: works on various rock types with the right pressure and bit; adapt your rock drill and splitter setup accordingly.
- Lower fatigue: mechanical splitting minimizes repetitive hammering, keeping operators fresher longer.
What Makes a Rock Drill and Splitter Ideal for Philippine Projects?
- Portability: Lightweight, durable units that can be transported over rough terrain and by small ships or trucks.
- Power options: Electric, pneumatic, and diesel-powered models to match available power sources on remote sites.
- Safety and efficiency: Modern drill bits, hydraulic splitters, and automatic feed reduce manual handling and enhance site safety.
