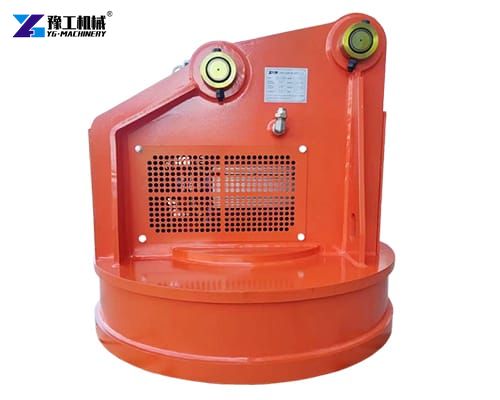

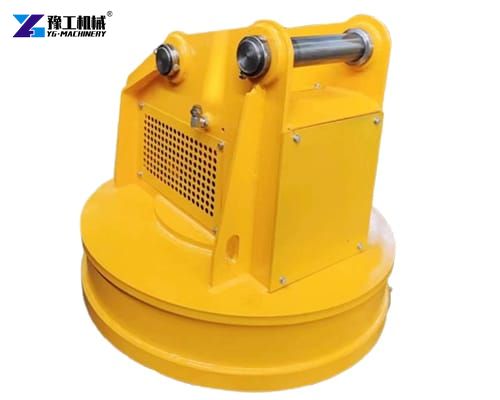

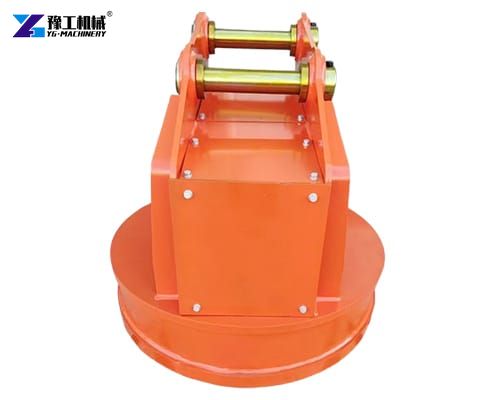

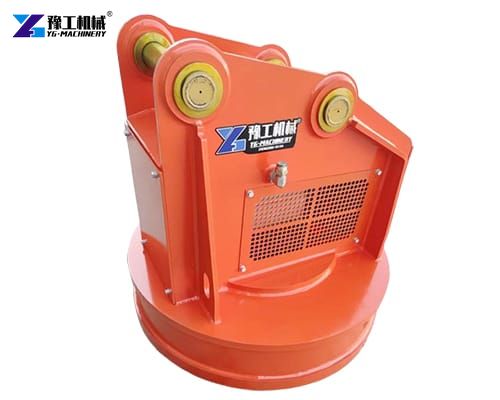

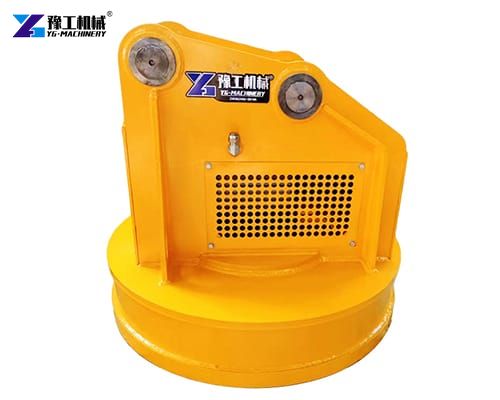

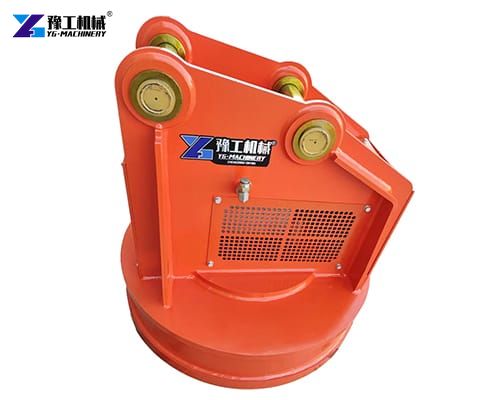

Hydraulic Magnet for Excavator

Hydraulic magnet for excavator is a specialized attachment, allows an excavator to efficiently pick up, move, and unload ferrous materials using the magnetic force generated through the machine’s existing hydraulic system. This type of attachment has become increasingly important in industries such as scrap metal recycling, demolition, construction, waste handling, and material sorting. The excavator magnet attachment is primarily engineered to convert hydraulic power into magnetic force. Because of their simplicity, durability, and versatility, hydraulic magnets continue to gain popularity across a wide range of heavy-duty operations.

Hydraulic Magnet for Excavator Specifications

Model	YGML02	YGML04	YGML06	YGML08	YGML10	YGML14	YGML20
Suitable excavator	4-6T	7-11T	12-16T	17-23T	24-30T	31-40T	41-50T
Weight	1400kg	1500kg	1890kg	2000kg	2200kg	2500kg	2800kg
Power	5kw	8kw	8kw	10kw	10kw	15kw	15kw
Outer diameter	700mm	800mm	900mm	1100mm	1200mm	1300mm	1400mm
Working flow	30-55 lpm	50-100 lpm	90-110 lpm	100-140 lpm	130-170 lpm	200-250 lpm	250-320 lpm
Working pressure	170 bar	180 bar	190 bar	200 bar	210 bar	250 bar	250 bar

Click Here for a Free Quote

YG Excavator Magnet Advantages

1. Because the hydraulic magnet for excavator connects directly to the excavator’s hydraulic lines, the hydraulic magnet does not require generators, cables, or electrical controllers. Operators can attach or detach it quickly using a standard excavator quick coupler, minimizing downtime.
2. Low maintenance
   With fewer electrical components and simplified construction, hydraulic magnets typically require less maintenance. There are no power cables to wear out and no external generators to service.
3. High lifting force
   Modern hydraulic magnets deliver strong magnetic performance capable of lifting heavy steel beams, scrap metal piles, rebar bundles, and demolition debris.
4. Increased productivity
   Operators can pick up materials much faster than with manual sorting or mechanical grapples. The instant on off control reduces operating cycle time significantly.
5. Safety improvement
   Hydraulic magnets reduce the need for laborers to handle sharp or hazardous scrap metal manually, thereby decreasing the risk of injury.

Click Here for a Free Quote

Why Investing in a Hydraulic Magnet Attachment Is Worthwhile?

Businesses that regularly handle steel, iron, or ferrous debris benefit greatly from owning a hydraulic magnet. Key advantages include:

1. Reduced labor costs
2. Shorter project timelines
3. Improved safety
4. Higher material recovery rates
5. Lower operating expenses due to minimal maintenance
6. Enhanced versatility of existing excavators

Click Here for a Free Quote

Common Applications of Hydraulic Magnet for Sale

1. Scrap metal recycling
   Scrap yards rely heavily on magnetic lifting attachments to move steel plates, iron pieces, machines, engines, and mixed ferrous materials. A hydraulic magnet allows rapid collection and sorting.
2. Demolition and deconstruction
   During demolition, steel beams, rebar, and metal fragments must be safely removed from debris. A hydraulic magnet quickly gathers metal waste from concrete rubble, improving cleanup efficiency.
3. Construction site clean-up
   Metal waste, such as cut rebar, nails, studs, pipes, and steel plate, can be dangerous for workers. Using a magnet ensures fast and thorough removal of metal materials.
4. Industrial material handling
   Factories and warehouses often use hydraulic magnets mounted on excavators or cranes to transport metal parts, sheets, and assemblies.
5. Ports and cargo handling
   Ports frequently handle metal cargo, steel scraps, and containers with metallic components. Hydraulic magnets provide fast loading and unloading solutions.

Click Here for a Free Quote

How to Choose the Right Excavator Magnet?

Selecting the proper hydraulic magnet requires consideration of several factors to achieve optimal performance and efficiency.

• Excavator size and hydraulic capacity
  The magnet must match the excavator’s hydraulic flow rate, pressure, and operating weight. Undersized magnets reduce productivity, while oversized magnets may overload the excavator.
• Required lifting capacity
  Different industries require magnets with specific lifting strength. Heavy scrap yards need high power magnets, while light construction cleanup requires a medium duty unit.
• Material type
  If handling highly irregular, bulky, or mixed scrap, a large diameter magnet provides stronger coverage. For compact materials, a smaller magnet may be sufficient.

YG Hydraulic Magnet for Excavator Available

Our hydraulic magnet for excavator is designed to help operators streamline sorting, lifting, and recycling tasks with maximum productivity. Whether you are handling scrap metal, demolition debris, or industrial waste, our excavator magnet attachment provides the strength and consistency needed for continuous operation. With durable components, advanced hydraulic integration, and field-tested performance, our hydraulic excavator magnet ensures long-term value and reduced downtime. If you are searching for a magnet system that enhances safety, improves workflow, and adapts to multiple excavator models, YG Attachments is ready to support your project needs. Contact us today to learn more about specifications, customization options, and pricing details.
