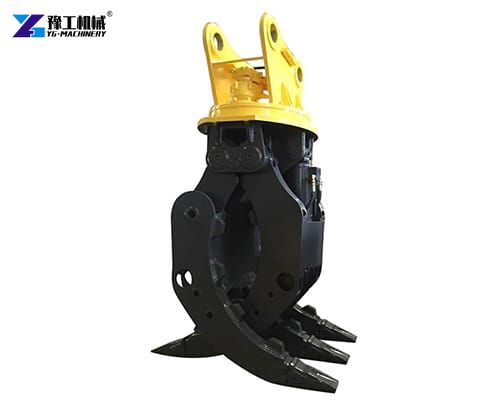

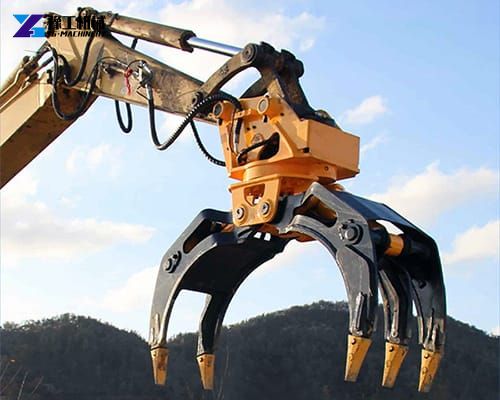

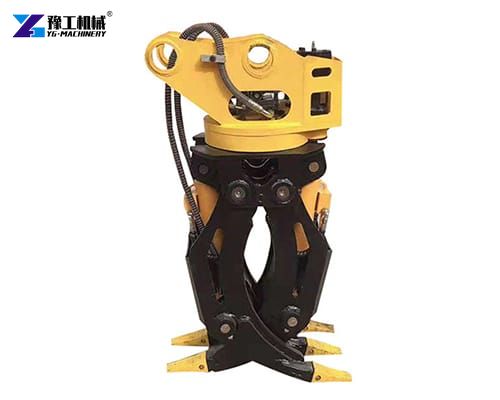

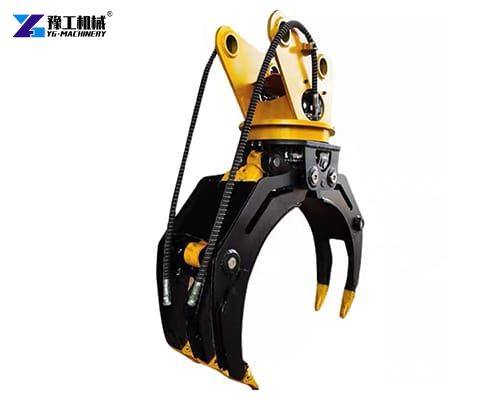

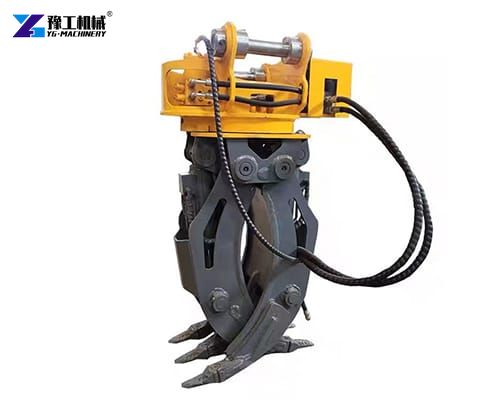

Hydraulic log grapple is a heavy-duty attachment designed to grip, lift, move, sort, and load logs or timber materials using hydraulic power. The hydraulic systems leverage pressurized fluid to operate the grapple’s jaws, providing unmatched control and force. This technology allows operators to handle logs of varying sizes and weights efficiently, even in rugged terrains. Built with strong steel arms, pivot joints, cylinders, and a secure clamping structure, it enables operators to manipulate large loads with precision and control. The grapple’s design typically includes heavy-duty jaws, hydraulic cylinders, and a rotating mechanism, all engineered to withstand the demands of logging operations.
Parameter of the Hydraulic Log Grapple
| Model | YGSR02A | YGSR04A | YGSR06A | YGSR08A | YGSR10A | YGSR14A |
| Suitable Excavator | 4-6T | 7-11T | 12-16T | 17-23T | 24-30T | 31-40T |
| Weight | 360kg | 440kg | 900kg | 1850kg | 2150kg | 2600kg |
| Max Jaw Opening | 1200mm | 1400mm | 1600mm | 2100mm | 2500mm | 2800mm |
| Working Pressure | 110-140bar | 120-160bar | 150-170bar | 160-180bar | 160-180bar | 180-200bar |
| Set Up Pressure | 170bar | 180bar | 190bar | 200bar | 210bar | 250bar |
| Working Flow | 30-55Ipm | 50-100Ipm | 90-110Ipm | 100-140Ipm | 130-170Ipm | 200-250Ipm |
| Cylinder Volume | 4.0*2T | 4.5*2T | 8.0*2T | 9.7*2T | 12*2T | 12*2T |
Features of Hydraulic Log Grapples
- Strong clamping force
The hydraulic cylinders deliver powerful, controlled pressure, ensuring logs remain secure during handling and minimizing the risk of dropping or slipping. - Reinforced high-strength steel
The arms and body of the grapple are typically crafted from high-tensile steel to withstand heavy impacts, abrasion, and bending forces. - Flexible jaw design
Some grapples have curved or tapered jaws for improved gripping efficiency, enabling better handling of uneven or irregularly shaped logs. - Smooth hydraulic control
Advanced valves, hoses, and flow systems ensure smooth and responsive movements, reducing operator fatigue and enhancing accuracy.
Common Applications
- Forestry and timber harvesting

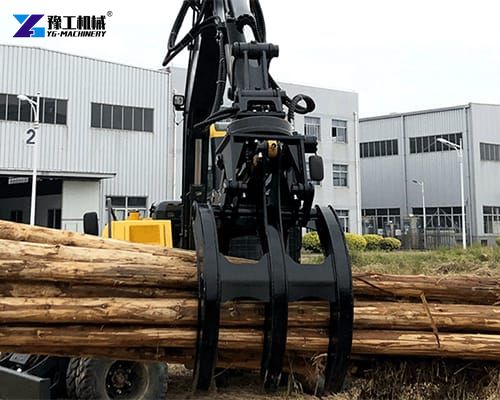

Hydraulic log grapples allow workers to sort, pile, strip, transport, and load logs with significant efficiency gains. They handle felled trees quickly, making them invaluable during large scale harvesting operations. - Land clearing and site preparation
During construction or farming, these tools remove unwanted trees, brush, and debris with ease. They can lift, tilt, sort, and place materials in designated areas for further processing. - Sawmill operations
At sawmills, precise lumber sorting is essential. Excavator log grapples move logs from storage areas to cutting lines, improving flow and reducing downtime.
Advantages of Using Log Grapple
- Efficiency and productivity
With the ability to lift large loads and maneuver them quickly, log grapple for sale dramatically increase workflow productivity and reduce operational time. - Versatility and adaptability
Multiple sizes, jaw styles, and configurations allow one machine to handle a variety of tasks ranging from delicate sorting to heavy lifting. - Reduced labor costs
Using a hydraulic log grapple minimizes the need for manual log handling crews, helping businesses cut long term labor expenses.
Performance Analysis And Considerations
- Load capacity
The grapple must be rated for the maximum weight of the logs it will carry. Exceeding limits may cause mechanical failures. - Jaw width and opening size
A wider opening accommodates large diameter logs. Conversely, smaller grapples may offer better precision for sorting or splitting tasks. - Hydraulic pressure requirements
The host machine must provide adequate hydraulic flow and pressure. Mismatch can reduce performance or damage the attachment.
Excavater Gapples in YG Attachments
When you choose YG Attachments, you’re investing in durability and reliability. Our attachments, like the powerful hydraulic log grapple and the resilient excavator orange peel grapple, are constructed with superior materials to withstand the toughest jobs. We pursue lower downtime and a higher return on investment. Contact us to find the proper attachment solution for your excavator.
