As global infrastructure development, recycling industries, and material handling projects continue to expand, excavator attachments are becoming increasingly specialized. Among them, the excavator orange peel grapple stands out as one of the most versatile and productive tools for handling loose, irregular, or bulky materials. For the question of how to choose an excavator orange peel grapple is not simply about price. It requires a clear understanding of configuration, machine compatibility, with a rotation or not, and long-term operating costs. Hoping this excavator orange peel grapple buying guide can help you make an informed purchasing decision. Before proceeding, let’s briefly familiarize ourselves with this machine again.

Excavator orange peel grapple is designed as a hydraulic attachment for material handlers. Its name comes from the shape of its tines, which resemble the segments of an orange peel when closed. These curved tines allow the grapple to efficiently grab, lift, and control loose or irregular materials that traditional buckets cannot handle effectively. It focuses on gripping, holding, and moving materials. Depending on the design, they can have four, five, or six tines, each optimized for specific types of materials and working conditions. More claws provide greater stability and are more suitable for small, scattered materials.

1. Choosing the Right Tine Configuration

Tine configuration plays a major role in performance. The number and shape of tines determine how effectively materials are grabbed and retained.

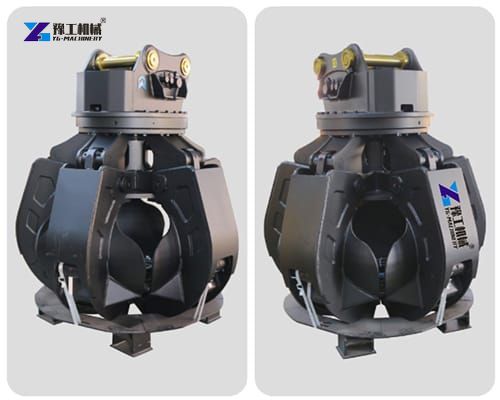

1. Four-tine orange peel grapples are commonly used for bulky scrap, demolition debris, and large objects. They offer wide openings and strong clamping force.
2. Five-tine orange peel grapples provide better material containment and are widely used in scrap yards and waste handling. The additional tine improves grip on smaller and irregular materials.
3. Six-tine designs are less common but are sometimes used for fine bulk materials where spillage control is critical.

2. Matching Grapple Size to Excavator Weight

One of the most important factors in this excavator orange peel grapple buying guide is correct sizing. Grapple size must match the excavator’s operating weight, hydraulic capacity, and lifting limits.

If the grapple is too large, it will reduce lifting capacity, strain the boom and stick, and slow down cycle times. If it is too small, productivity will suffer because each load carries less material.

We usually specify recommended excavator tonnage ranges for each grapple model. Always follow these guidelines and consider real-world working conditions, such as reach, material density, and lifting height.

Here are some specifications as follows:

Model	YG-04A	YG-06A	YG-08A	YG-06B	YG-08B
No. of Jaw	4/5 piece	4/5 piece	4/5 piece	4/5 piece	4/5 piece
Suitable Excavator	6-9T	10-17T	18-25T	10-17T	18-25T
Weight	355/420kg	900/1000kg	1650/1900kg	850/1000kg	1700/1950kg
Max. Opened Grapple	1200mm	1600mm	2050mm	1900mm	2500mm
Height of Opened Grapple	1000mm	1500mm	1700mm	1550mm	2000mm
Working pressure	200bar	260bar	320bar	260bar	320bar
Working flow	50-100lpm	60-120lpm	200-250lpm	60-120lpm	200-250lpm
Capacity	0.3m³	0.4m³	0.8m³	0.5m³	1m³

Click Here for a Free Quote

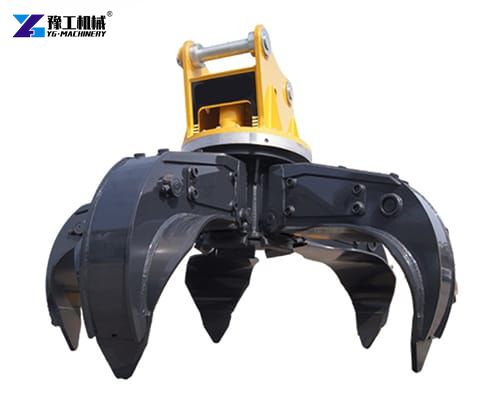

3. Rotation System and Its Importance

Rotation capability significantly enhances the functionality of an orange peel grapple. There are two main rotation options.

Mechanical rotation uses a slewing ring driven by hydraulic motors. It offers continuous 360-degree rotation, making it ideal for scrap yards and sorting operations where precise positioning is essential.

Non-rotating or fixed grapples are simpler and cheaper but limit maneuverability. They may be suitable for basic loading tasks but reduce overall efficiency in complex environments.

We can choose the suitable type according to the applications and budget for how to choose an excavator orange peel grapple.

4. Cost Versus Value Analysis

Price is often the first thing buyers look at, but it should not be the final decision factor. The true cost of an excavator orange peel grapple includes purchase price, operating efficiency, maintenance costs, and service life.

A cheaper grapple may save money upfront, but wears out quickly, leading to frequent repairs and lost productivity. A higher-quality grapple, while more expensive initially, often delivers better long-term value.

When comparing options, consider hidden costs rather than purchase price alone. This approach provides a more accurate picture of return on investment.

If you are looking for an orange peel grapple for your excavator, welcome to contact us, and we can help you choose the suitable one.
