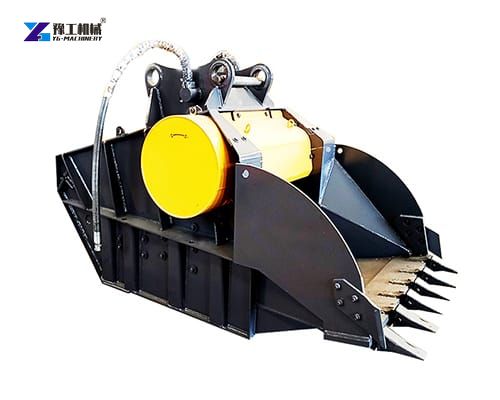

Concrete crusher bucket is a practical and essential attachment for excavators and construction machinery, widely used in the construction and demolition industry. It can transform concrete waste into reusable aggregate, requiring efficient processing directly on site. Built with heavy-duty steel plates and high-manganese jaw teeth, the crusher bucket attachment handles demanding demolition tasks without continuous wear. It reduces the need to transport bulk materials off-site, which cuts down trucking expenses and landfill disposal fees. Contracting companies use this equipment to process urban demolition waste, repair road beds, and prepare foundation materials. By turning waste into usable fill, operators keep project timelines short and save on material purchasing costs.
Parameters of Concrete Crusher Bucket
| Model | YG-P15 | YG-P25 | YG-P35 |
| Suitable Excavator | 10-20T | 20-30T | 30-40T |
| Capacity | 0.35m³ | 0.7m³ | 0.8m³ |
| Working Pressure | 25MPa | 25MPa | 25MPa |
| Working Flow Rate | 90L/min | 145L/min | 235L/min |
| Inlet Size | 550*450mm | 750*500mm | 950*500mm |
| Outlet Size | 15-120mm | 15-120mm | 15-120mm |
| Overall Dimensions | 1820*1080*1200mm | 2300*1400*1400mm | 2400*1690*1600mm |
| Weight | 1500kg | 3000kg | 4000kg |
Features of the Concrete Crusher Bucket
This product is made of strong, wear-resistant steel that can work for very long hours without easy damage.
Its jaws are made of hardened manganese steel, which can grip and shear hard concrete and rock smoothly.
The bucket has an adjustable output setting, so operators can change the size of the final crushed pieces to fit different job needs.
Most models are designed to fit excavators from 15 tons to 50 tons, so they can match many common machines on the market.
This simple design keeps the machine running most of the time and cuts down unnecessary downtime during busy workdays.
How Does A Crusher Bucket Turn Big Hard Concrete Into Small Pieces?
When the excavator arm moves the bucket over a pile of broken concrete or rock, the operator opens the bucket mouth and scoops the hard material inside. The hydraulic system of the excavator sends steady high-pressure oil to drive the two strong jaws inside the bucket. These two jaws move toward each other again and again, squeezing, gripping, and shearing the big hard blocks until they break into small pieces. The small pieces that are small enough will fall out from the bottom gap of the bucket, while the larger ones stay inside and get crushed again. Workers can turn a simple knob to change the gap size between the two jaws, so they get different sizes of final material as they need. The whole process does not need any extra power source, and it uses the existing power system of the excavator directly.
Wide Application Scenarios For This Practical Crushing Attachment
The most common use is in building demolition projects, where workers crush old concrete foundation slabs and broken wall pieces directly on site.
The small crushed material can be reused as backfill for new road beds or new building foundations right there.
It also works very well in road construction sites, where it crushes old asphalt pieces and broken road stone into reusable aggregate.
In mining areas, workers can use it to process small rocks and ores near the working area, no need to carry all raw material to a far crushing station.
Even in some rural areas with very narrow roads, teams can bring this small bucket to finish crushing work easily, because it does not need large trucks to move a separate big crusher.
It can also process bricks, glass pieces, and other inert waste on many different kinds of construction sites, making waste recycling much simpler than before.
Advantages of Using a Concrete Crusher Bucket on Your Worksite
The primary concrete crusher bucket benefit is dramatic transportation cost savings, as teams process material right on site instead of paying for dump trucks.
Operators reduce raw material costs by creating custom aggregate sizes directly from recycled demolition waste.
Installing the attachment requires no extra engine power source, drawing energy smoothly from the host excavator.
The flexible discharge setting lets users match job specifications without changing equipment setup.
Buying a quality concrete crusher bucket improves job safety, slashes operating expenses, and boosts daily profitability on every job site.
Related Excavator Attachments for Sale and Contact Us
If you are looking for other useful excavator attachments to match your new concrete crusher bucket, we also have many related products for you to choose from. You can check our strong hydraulic breaker, which helps you break extra thick hard concrete slabs before you put them into the crusher bucket. We also have screening buckets that can separate different sizes of crushed material for different reuse needs. Our durable grapple attachment can help you move large broken building waste pieces around the site easily. All these attachments are designed to fit most common excavator models, and they work very well together with our crusher bucket to make your whole job site work much smoother. If you want to know more detailed information, just send us a message, and we will reply to you soon.
