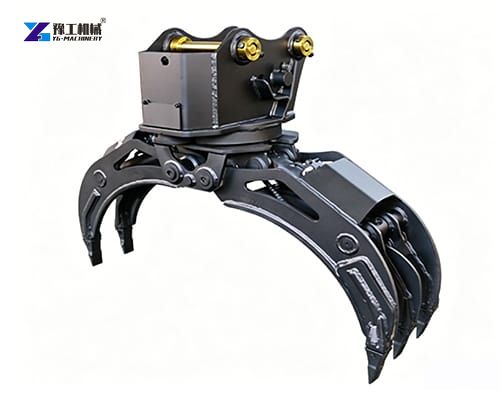

Excavator log grab is a powerful attachment designed to help excavators handle logs, timber, branches, and other bulky materials safely and efficiently. Built with high-strength steel and a durable hydraulic system, this attachment provides a strong gripping force that improves loading, unloading, sorting, and transportation tasks. Whether working in forestry, sawmills, land clearing projects, or recycling facilities, an excavator log grapple can significantly increase productivity while reducing manual labor. It is compatible with different excavator sizes, making it a versatile solution for contractors and equipment owners. Depending on the model, it can match excavators from 4 to 40 tons and provide reliable performance under demanding working conditions. The attachment is engineered for smooth operation, excellent durability, and long service life, helping operators complete material handling tasks more quickly and accurately. With its robust structure and advanced hydraulic design, the log grab attachment has become an essential tool for modern material handling applications across multiple industries.
Specifications of Log Grab Attachment for Excavator
| Model | YGSR02A | YGSR04A | YGSR06A | YGSR08A | YGSR10A | YGSR14A |
| Suitable Excavator | 4-6T | 7-11T | 12-16T | 17-23T | 24-30T | 31-40T |
| Weight | 360kg | 440kg | 900kg | 1850kg | 2150kg | 2600kg |
| Max Jaw Opening | 1200mm | 1400mm | 1600mm | 2100mm | 2500mm | 2800mm |
| Working Pressure | 110-140bar | 120-160bar | 150-170bar | 160-180bar | 160-180bar | 180-200bar |
| Set Up Pressure | 170bar | 180bar | 190bar | 200bar | 210bar | 250bar |
| Working Flow | 30-55Ipm | 50-100Ipm | 90-110Ipm | 100-140Ipm | 130-170Ipm | 200-250Ipm |
| Cylinder Volume | 4.0*2T | 4.5*2T | 8.0*2T | 9.7*2T | 12*2T | 12*2T |
Excavator Log Grab Enhances Your Machine Performance
This high-quality attachment comes with great technical features that make it a perfect fit for various machinery models.
It is built using high-strength steel to withstand the toughest outdoor environments without breaking or bending.
Our professional product line offers different sizes, ranging from the compact YGSR02A model for smaller 4-6T excavators to the massive YGSR14A model made for heavy-duty 31-40T machines.
The total weight of these attachments starts at just 360kg and goes up to 2600kg for the largest version, ensuring excellent stability and durability during heavy lifting.
With a maximum jaw opening that stretches from 1200mm up to 2800mm, you can easily grab massive tree trunks or small brush piles.
This strong excavator log grapple can handle varying hydraulic flow rates to deliver smooth and continuous grabbing power during long work shifts.
How Does an Excavator Log Grab Attachment Work?
The working principle of an excavator log grab is straightforward and easy to understand. The attachment is connected to the excavator’s hydraulic system, which supplies the power needed to open and close the grab jaws. When the operator activates the hydraulic controls from inside the cab, hydraulic oil flows into the cylinders, causing the jaws to move. The jaws then securely grip logs, branches, wooden poles, or other materials. Once the material is held firmly, the excavator can lift, rotate, transport, and place it in the desired location.
A high-quality excavator log graple is designed to provide smooth and precise movement, allowing operators to handle materials with greater control. This precision helps reduce material loss and improves workplace safety. The attachment can efficiently perform repetitive loading and unloading tasks that would otherwise require significant manual effort. By combining hydraulic power with the excavator’s lifting capabilities, the log grab creates an efficient material-handling solution that saves time, reduces labor costs, and improves overall project productivity.
Ideal Applications Across Forestry, Construction, and Recycling Industries
This versatile attachment is perfect for many different industries that handle timber, brush, and recycling materials on a daily basis. In standard forestry projects, logging crews use it to stack freshly cut trees onto transport trucks or move logs into large sorting piles. For construction and land clearing teams, it helps clear away messy bushes, old roots, and fallen trees quickly to prepare the ground for building new roads or residential houses. Recycling centers also use this tool to separate wood waste from other debris or to feed large wood chippers safely from a comfortable distance. Because it can handle irregular shapes with ease, it is also highly useful for placing large stones or landscaping rocks, making it a truly multi-purpose tool for any machinery fleet.
Explore More Attachments and Contact Us for More Info
In addition to the excavator log grab, we offer a wide range of excavator attachments designed to improve productivity in different industries. Popular options include hydraulic grapples, orange peel grapples, demolition grabs, hydraulic shears, quick couplers, buckets, rippers, and forestry attachments. Each product is engineered to deliver reliable performance, durability, and operational efficiency under demanding working conditions.
If you are looking for the right log grapple attachment or other attachment solutions for your excavator, our team is ready to help. Whether you operate in forestry, construction, recycling, agriculture, or municipal services, we can help you find the most suitable attachment for your needs. We look forward to helping you improve productivity, reduce operating costs, and achieve greater success in your projects.
