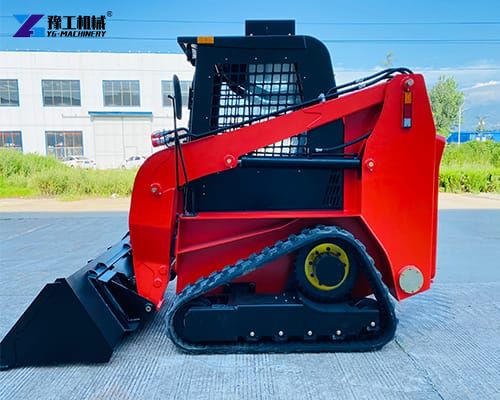

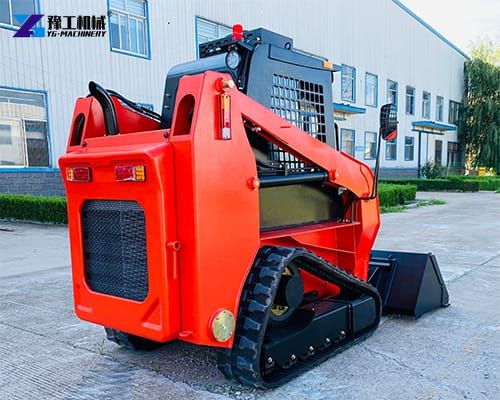

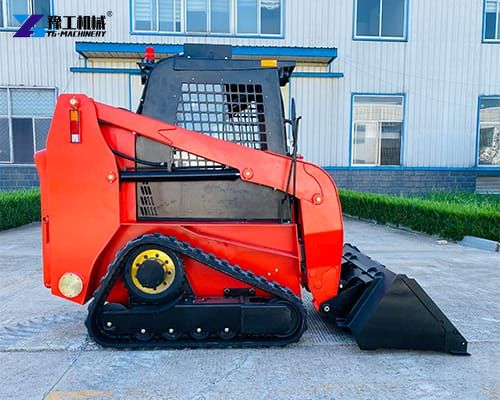

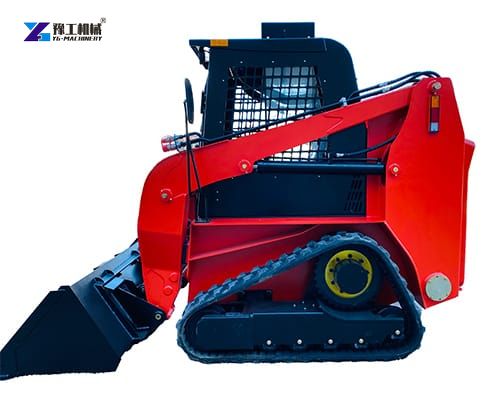

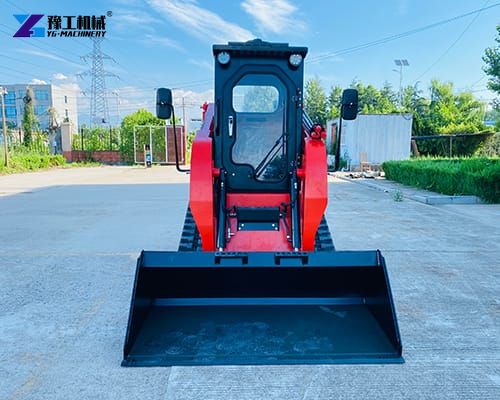

Crawler skid steer loader, often referred to as a compact track loader, is a small, rigid-frame, engine-powered machine with lift arms that can attach to a wide variety of labor-saving tools. The defining characteristic is its undercarriage, which uses continuous rubber tracks instead of wheels. The term skid steer refers to the steering mechanism where the left and right track drives operate independently. By varying the speed and direction of each track, the machine can turn within its own footprint, a feature known as zero-radius turning. This makes it exceptionally maneuverable in tight spaces such as residential backyards, indoor demolition sites, and narrow urban corridors. The crawler configuration offers significant advantages over wheeled skid steers, especially in terms of traction, stability, and ground preservation.
Crawler Skid Steer Loader Specifications

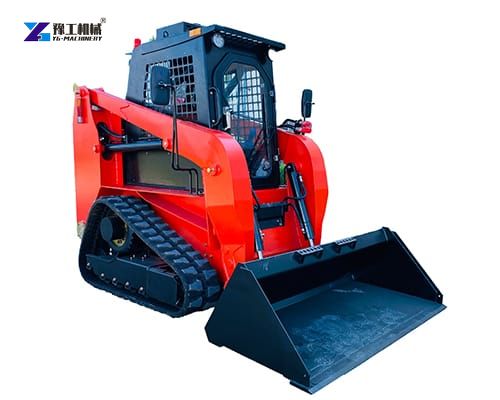

| Model | YGT50 | YGT65 |
| Operating load (kg) | 700 | 1000 |
| Max Speed(km/h) | 10 | 12 |
| Rated flux (L/min) | 80 | 89 |
| Rated power (kw) | 45 | 55 |
| Fuel tank capacity (L) | 50 | 90 |
| Self-weight bucket (kg) | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 |
| Overall operating height (mm) | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2730 | 2970 |
| Height to top of cab (mm) | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2500 | 2790 |
| Without bucket length(mm) | 2170 | 2450 |
| Overall length with bucket(mm) | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 40 | 40 |
| Dumping height(mm) | 1990 | 2270 |
| Dumping reach(mm) | 1040 | 1120 |
| Rollback of bucket on ground(° ) | 30 | 30 |
| Rollback of bucket at full height(° ) | 100 | 100 |
| Wheelbase(mm) | 1230 | 1500 |
| Ground clearance(mm) | 230 | 200 |
| Angle of departure(° ) | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1064 | 1230 |
| Front tuning radius(mm) | 1825 | 2010 |
| Rear tuning radius(mm) | 1264 | 1720 |
| Rear axle to bumper (mm) | 590 | 730 |
| Tread width (mm) | 1022 | 1482 |
| Width (mm) | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 |
Core Features that Set Crawler Skid Steers Apart
Several key features distinguish crawler skid steer loaders from other compact equipment.
- First is the rubber track system, which typically features a steel-reinforced carcass with tread patterns designed for specific applications, from turf-friendly to heavy-duty rock digging. The tracks are driven by hydraulic motors that provide high torque at low speeds, ensuring smooth acceleration and deceleration.
- Second is the vertical lift or radial lift arm design. Vertical lift paths are ideal for lifting loads to full height while keeping the bucket close to the machine, perfect for truck loading and pallet handling. Radial lift paths offer better digging and scooping performance at ground level, making them suitable for grading and excavating.
- Third, modern crawler skid steers boast high-flow auxiliary hydraulics, enabling the use of powerful attachments like cold planers, brush cutters, and snow blowers.
- Fourth, operator comfort has become a priority, with a seat and large glass areas for visibility.
Diverse Applications Across Industries
- In construction, the crawler skid steer loader is indispensable for site preparation, trenching, backfilling, and material handling. Their ability to navigate muddy foundations and uneven terrain makes them ideal for residential housing projects where space is limited.
- In agriculture, these machines are used for cleaning barns, moving hay bales, feeding livestock, and maintaining drainage ditches. The low ground pressure means they can traverse pastureland without causing ruts, preserving soil health.
- Landscaping professionals rely on crawler skid steers for grading, sod removal, tree stump grinding, and installing retaining walls. Their compact size allows access through standard garden gates.
- In forestry and land clearing, tracked skid steers equipped with forestry mulchers can chew through dense brush and small trees with ease.
- Municipalities employ them for sidewalk repair, park maintenance, and snow removal, where the traction of tracks outperforms wheels on icy surfaces.
- Even in mining and quarrying, heavy-duty crawler skid steers handle ore transfer, crusher feeding, and cleanup operations in confined underground spaces.
Advantages Over Wheeled Skid Steer Loaders
- The most obvious benefit is traction. Tracks provide a larger contact patch with the ground, which translates into superior pulling power and the ability to climb slopes up to 45 degrees or more, depending on the model. In wet, slippery, or sandy conditions, wheeled machines frequently spin out, while tracked units maintain forward progress.
- Second, ground pressure is significantly lower, typically half that of a wheeled skid steer of similar weight. This minimizes damage to turf, asphalt, and finished surfaces, reducing repair costs and site restoration time.
- Third, the ride quality is smoother due to the damping effect of the rubber tracks, which absorb small irregularities in the terrain. This reduces operator fatigue during long shifts.
- Fourth, the stability during heavy lifting is enhanced because the longer footprint reduces the risk of tipping forward or sideways.
- Fifth, the flotation capability allows crawler skid steers to work on soft marshlands, riverbanks, and snow-covered lots where wheeled machines would sink.
Head-to-Head Comparison with Compact Excavators and Wheel Loaders
The crawler skid steer loader excels in versatility and maneuverability.
Unlike a compact excavator, which is primarily a digging tool, the skid steer can perform pushing, grading, loading, and sweeping tasks with equal efficiency. The excavator has superior reach and digging depth, but it is slower to reposition and cannot handle bulk material transport as effectively.
Compared to a wheel loader, the crawler skid steer is far more compact and agile, making it ideal for confined spaces. However, a wheel loader offers higher travel speeds and larger bucket capacities for long hauls. The tracked skid steer’s advantage over both is its ability to work on soft or uneven terrain without sinking or sliding.

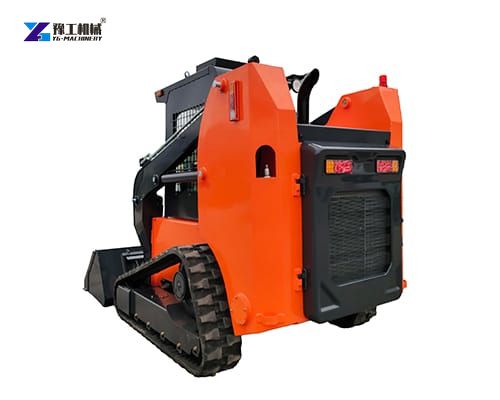

Crawler Skid Steer for Sale in YG Machinery
The crawler skid steer loader represents one of the most efficient and adaptable machines available in today’s construction and industrial equipment market. Its combination of compact dimensions, superior traction, exceptional maneuverability, powerful hydraulics, and attachment versatility enables operators to perform an extensive range of tasks with remarkable efficiency. From construction and landscaping to agriculture, forestry, mining, and municipal maintenance, the crawler skid steer consistently demonstrates outstanding reliability across demanding environments. For more details and to select the right model, please contact us freely.
